LUMINOUS Mata – Timber framed glass wall

The organic beauty of wood meets the clarity and performance of glass to provide the industry’s most elegant space division design option – Luminous Mata walls from Kwik-Wall!

  • Offset-stacking Individual panels or centerline-stacking hinged paired panel configurations.
  • Opening heights to 10’-2” and unlimited opening widths.
  • 1-3/4” nominal panel thickness, with triple laminated frame construction for strength and stability.
  • Operable full height pass doors locatable anywhere in opening, hinged to adjacent anchor panel.
  • Single or double 3’0” wide pass doors available.
  • Vertical panel stiles incorporate full height rubber gasketing to cushion panel joints and block light.
  • Top supported operable glass wall – no floor tack required.
  • All panels have mortised, edge-activated floor pins for stability and security.
  • Frame wood species options are Red Oak, Maple, finish stained and sealed with matte polyurethane. Also available in Poplar, painted finish, black or white.
  • Flexible vinyl seals block light at panel top and bottom, providing 1” nominal clearance.
  • Glazing options accommodate 1/4” – 5/16” material thickness and include tempered, laminated, low-iron tempered translucent and decorative glass.
  • Hardware options include Polished Chrome, Satin Nickel, Antique or polished Brass, Oil-rubbed Bronze, or Matte Black.
organic beauty of wood frames with the visual clarity of glass

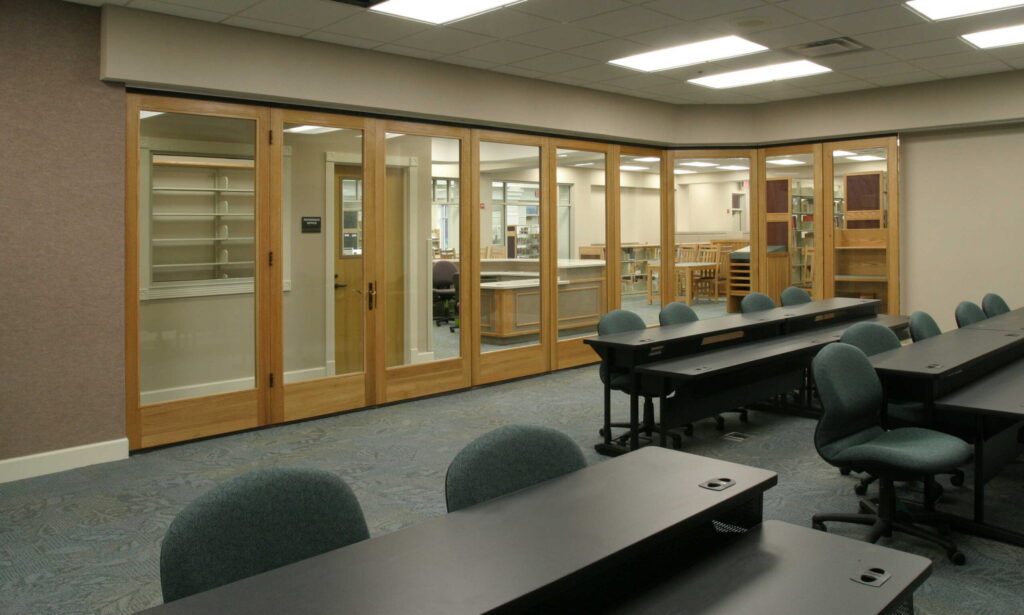

Luminous Mata wood framed glass insert movable wall, organic beauty of wood plus the clear viewing of glass. Individual or paired panel configurations to separate spaces in classroom setting

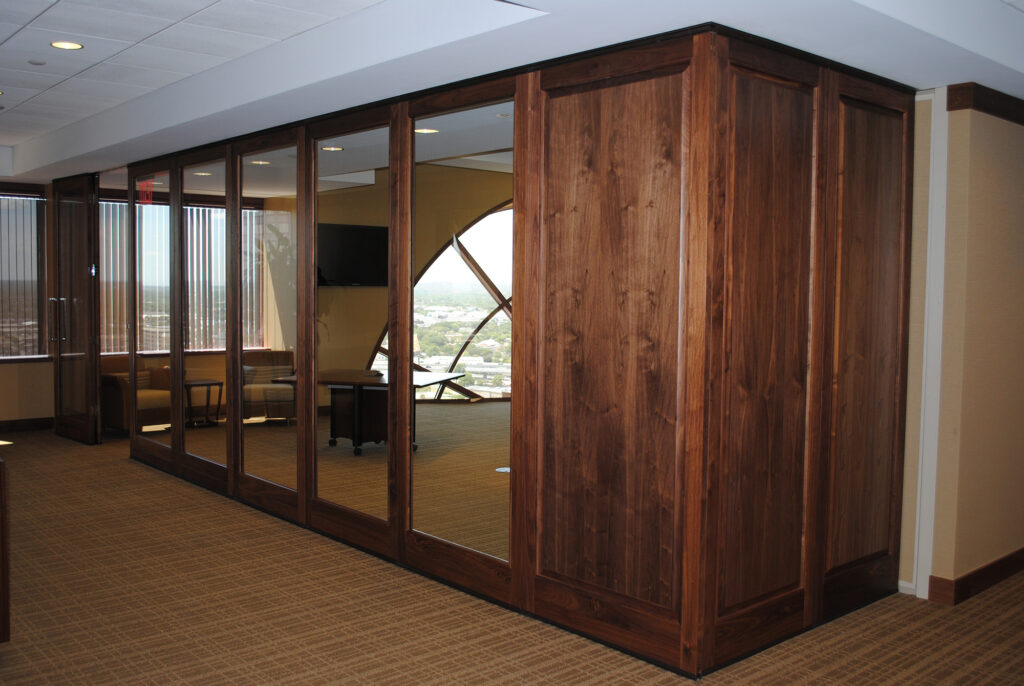

Luminous Mata timber framed glass wall with solid inserts and glass inserts
