INTRODUCING Luminous™ Glass Walls – the industry’s most comprehensive and full-featured lineup of movable glass wall products. With best-in-class sound control, panel automation, switchable smart glass, multiple layout and configuration options and in nearly unlimited finishes, LUMINOUS glass walls provide nearly limitless versatility in a sophisticated and refined style, adding a unique vision element to your space division designs.
Note: Looking to add a visual aesthetic to your steel-framed 3000 and 2000 Series Operable Wall project? Click the Operable Walls button above to access information on adding GL Series, sealed, insulated glass unit (IGU) panel inserts to your 3000 Series or 2000 Series steel-framed operable wall projects. Sound-tested by an NVLAP-certified, independent acoustical laboratory at 38, 43, or 48 STC, high performing GL Series IGU operable wall panel inserts are compatible and interchangeable with Kwik-Wall’s industry-leading, individual or paired-panel operable wall configurations.
The industry’s premium performance glass wall line, Luminous Stella glass walls provide up to 50 STC sound control!
Top-supported panel suspension requiring no floor track, and available in either manual operation; semi-automatic and programmable, self-driving fully automatic panels with telescoping final closure and automatic top and bottom seal activation, Luminous Stella glass walls are available with multiple frame finish and glass options including switchable smart glass, in panel heights up to 14’9″ tall.
It is no wonder that Stella is the star of the Luminous movable glass partition line.

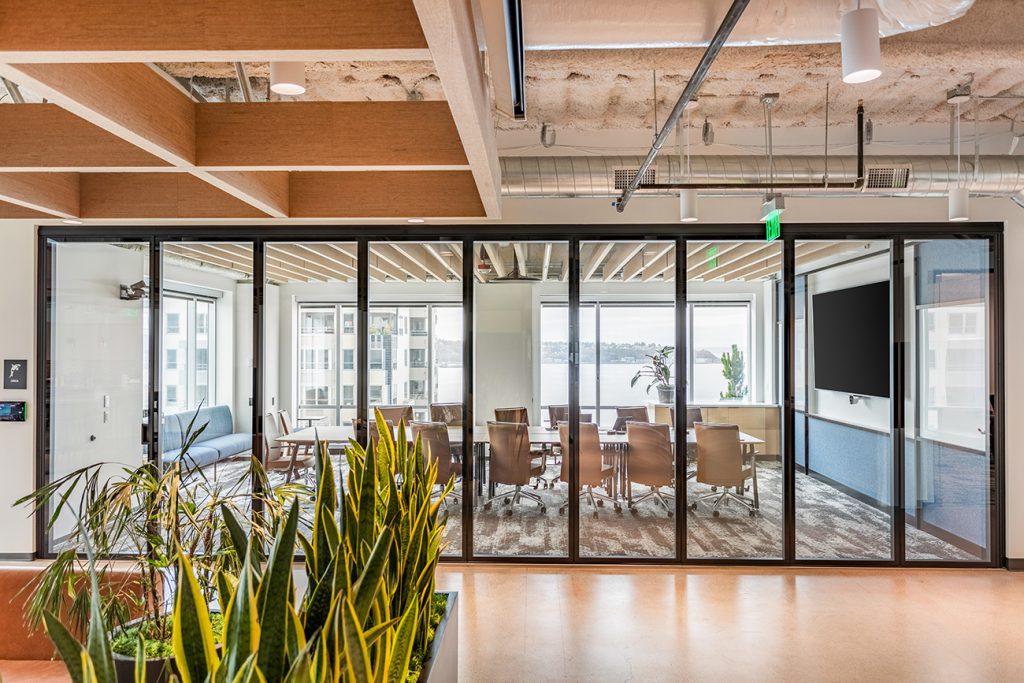

At a sleek 2-3/4″ (71 mm) aluminum framed panel thickness, Luminous Luna sliding, folding, movable glass partitions combine designer aesthetics with high-performance sound control (43 STC), making it arguably the most performance-capable glass wall product on the market today.
Available in top track supported or in floor supported models with low profile floor guides, up to 9′-10″ opening height, with tempered, laminated or switchable smart glass, in multiple frame finishes and with single or double pass door panels, and invisible hinges as standard, Luminous Luna glass walls perform with beauty!
Boasting the industry’s thinnest-framed operable glass wall at just 1-3/8″ thickness, Luminous Illona takes trim-lined glass wall aesthetics to the ultimate while still providing acoustic separation with 33 STC certified sound control.
Available in top-supported, individual panels with twin carrier suspension, or with pivoting panels on single, centered carriers, and in floor-supported, top guided continuously hinged panel train configurations, Luminous Illona glass walls provide maximum flexibility in layout, configuration and structural support capabilities in an aesthetically pleasing, narrow- framed glass wall system.

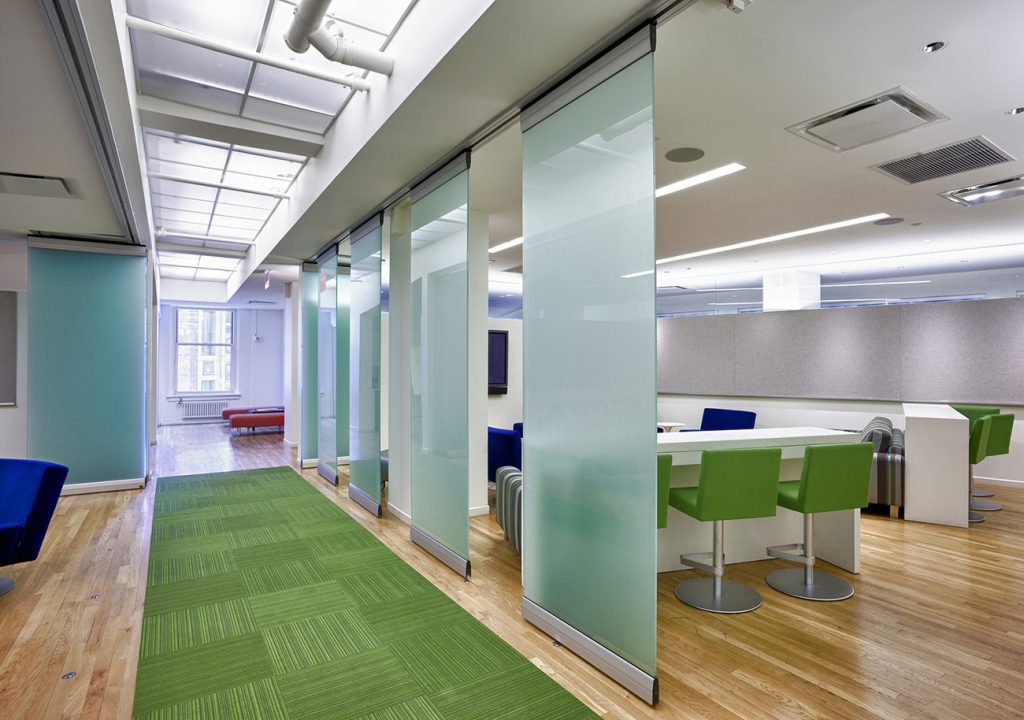

For uninterrupted visual continuity across your interior space when sound isolation is not required, Luminous Ava is your answer. Ava panels have secure horizontal top and bottom rails, and when fitted to our performance-proven track and carrier systems, glide across your room quickly and quietly to minimize set-up time and maximize utility.
Multidirectional individual panels can have unlimited storage location possibilities to fit your design criteria. If crystal-clear panoramic viewing across your space is what your project requires, look no further than Kwik-Wall’s Luminous Ava glass walls!
The organic beauty of wood meets the visual clarity and performance of glass to provide the industry’s most elegant space division design option – Luminous MATA walls from Kwik-Wall! Indulge your design with available triple-laminated frame options in Red Oak and Maple, stained and sealed with a matte polyurethane finish in four stain colors. Also available in Poplar, painted white or black Overhead track-supported panels requiring no floor track, glide quietly across your opening, and Mata’s sleek 1-3/4” frame thickness provides a compact storage footprint.
Multiple glazing options including decorative glass, and designer hardware options in polished chrome, satin nickel, antique or polished brass, oil-rubbed bronze or matte black, provide the quality finishing touches to the stylish simplicity and classic timber charm of Luminous Mata – from Kwik-Wall!
Kwik-Guide: LUMINOUS Glass Walls
SPECIFICATIONS | Description | STELLA | LUNA | ILLONA | AVA | MATA |
CONFIGURATION | Individual, Multi-Directional Panels | YES | YES | YES | YES | YES |
Centerline, Hinged Paired Panels | N/A | N/A | N/A | YES | YES | |
Centerline, Individual Panels | YES | N/A | N/A | N/A | N/A | |
Continuously-Hinged Panels | N/A | YES, Centerline and Side-Stacking | YES, Centerline and Side-Stacking | N/A | N/A | |
Pivoting & Stacking Individual Panels | N/A | N/A | YES | N/A | N/A | |
Single & Telescoping Slider Panels | N/A | N/A | YES | N/A | YES | |
OPERATION | Manual | YES | YES | YES | YES | YES |
Automated, Programmable Self-Driving Panels | YES | N/A | N/A | N/A | N/A | |
Semi-Automated Seals | YES | N/A | N/A | N/A | N/A | |
SOUND CONTROL | ISO/STC Ratings | 44 & 50 | 43 | 33 | Non-Acoustic (35 STC available with edge trim on Individual Panels) | Non-Acoustic |
SUSPENSION | Top-Supported | YES | YES | YES | YES | YES |
Floor-Supported | N/A | YES | N/A | N/A | N/A | |
PANELS | Panel Width | 51" (1300 mm) | 41-3/8" (1050 mm) | 39-3/8" (1000 mm) | 48" (1219 mm) | 48" (1219 mm) |
Frame Thickness | 4-1/2" (115 mm) 44 STC or 4-11/16" (119 mm) 50 STC | 2-3/4" (71 mm) | 1-3/8" (35 mm) | 1-7/16" (36.5 mm) | 1-3/4" (44.5 mm) | |
Maximum Panel Height | 44 STC = 10'-0" (3048 mm) 50 STC = 11'-0" (3353 mm) 44 & 50 STC w/interrupted glass = 14'-9" (4495.8 mm) | 9'-10" (3000 mm) | 9'-10" (3000 mm) | 10'-6" (3200 mm) | 10'-2" (3098 mm) | |
PASS DOORS | Full-Height | YES, Single, Double | YES, Single, Double | YES, Single, Double | YES, Single, Double | YES, Single, Double |
Inset | YES, Single, Double | N/A | N/A | N/A | N/A | |
Full-Height, Hinged Closure | YES @ opening Perimeters | YES @ opening Perimeters | YES @ opening Perimeters | YES @ opening Perimeters | YES @ opening Perimeters | |
PANEL FACE OPTIONS | Solid Face, MDF-Backed Melamine, HPL | YES | YES | N/A | N/A | N/A |
Wood Insert | N/A | N/A | N/A | N/A | YES | |
Electric Internal Mini-Blinds | YES | YES | N/A | N/A | N/A | |
Mullions, Muntins | YES, Internal Mullions & Muntins | YES, Internal Muntins | YES, Surface-Mounted Muntins | N/A | YES, Mullions & Surface-Mounted Muntins | |
OPENING | Max. Opening Width | Unlimited | Unlimited | Unlimited | Unlimited | Unlimited |
WEIGHT | Lbs./Sq. Ft. | 8.0 - 44 STC 9.85 - 50 STC | 6.35 | 6.25 | 7.35 | 7.5 - 8.0 |
HINGING | Full-Leaf Butt Hinges | N/A | N/A | N/A | Optional | Optional |
Invisible Hinges | Standard | Standard | Standard | N/A | N/A | |
FRAME TYPE | Aluminum | Aluminum Extrusion | Aluminum Extrusion | Aluminum Extrusion | Aluminum Extrusion | Aluminum Extrusion |
Timber, Triple Laminated | N/A | N/A | N/A | N/A | Red Oak, Maple (stained), Poplar (painted Black or White) | |
FRAME FINISH | Options | Standard: Clear Anodized, Black, White, Optional: Custom RAL Powder Coat, Sublimation Wood Look | Standard: Black Powder Coat, Optional: Custom RAL Powder Coat, Sublimation Wood Look | Standard: Black or White Powder Coat, Optional: Custom RAL Powder Coat, Sublimation Wood Look | Standard: Clear Anodized Optional: Black Powder Coat or Custom RAL Color Options | Stain: Fruitwood, Dark Oak, Wheat, Cordovan, Painted: black, white, or Unfinished |
FRAME THICKNESS | 4-1/2" (115 mm) 44 STC or 4-11/16" (119 mm) 50 STC | 2-3/4" (71 mm) | 1-3/8" (35 mm) | 1-7/16" (36.5 mm) | 1-3/4" (44.5 mm) | |
GLASS | Types Available | Tempered, Laminated Glass, Switchable, Child-Safe & Fully Back-Painted Glass | Tempered, Laminated Glass, Switchable, Child-Safe & Fully Back-Painted Glass | Tempered, Laminated Glass & Back-Painted Glass | 1/2"" Clear, Tempered | 1/4" Tempered Glass, 5/16" Frosted Laminated, Custom Glass Options |
TRACK TYPE | Structural Aluminum Extrusion | Top-Supported Multidirectional & Single-Point | Top-Supported Multidirectional & Single-Point, Top Guide (floor-supported) | Top-Supported Multidirectional & Single-Point | Top-Supported Multidirectional & Single-Point | Top-Supported Multidirectional & Single-Point |
TRACK FINISH | Options | Standard: Clear Anodized, Black or White Powder Coat, Optional: Custom RAL Options | Standard: Black Powder Coat, Clear anodized and White available for multi-directional, pivoting panels only Optional: custom RAL colors | Standard: Clear Anodized (multi-directional, pivoting panels only), Black or White powder coat, Optional: custom RAL colors | Standard: Clear Anodized Optional: Black Powder Coat or Custom RAL Color Options | Standard: Clear Anodized, Black Powder Coat, Custom RAL Options |
FLOOR GUIDE | Available / Optional | N/A | Optional, (based on configuration) | Optional, (based on configuration) | N/A | N/A |
FINAL CLOSURE | Options | Panel or Wall-Mounted Telescoping Jamb, Full-Height Door | Hinged Closure Panel, Full- Height Door | Hinged Closure Panel, Full- Height Door | Fixed Pivot Panel, Fixed Swing Panel | Hinged Closure Panel, None Required (dependent on configration) |
SECURITY | Locking Options | Cylinder Key Lock | Cylinder Key Lock | Cylinder Key Lock, and Floor-Pin Locking System | Face-Mount Floor Key Lock | Adams-Rite Keyed Floor Lock |
SEALS | Bottom Seals | Electric, Automatic, Semi-Automatic, Manual, Operable | Fixed Bulb (floor supported), Fixed Brush (top-supported) | Fixed Brush | Fixed Brush | Fixed Flexible Vinyl |
Top Seals | Electric, Automatic, Semi-Automatic, Manual, Operable | Fixed Bulb (floor supported), Fixed Brush (top-supported | Fixed Brush | Fixed Brush | Fixed Flexible Vinyl |
