Operable Walls from Kwik-Wall set the standard for ease of use, durability, aesthetics and sound control. Available in flexible layout and storage configurations to optimize your interior space division needs, set up times are minimal, allowing your interior spaces to transform with little effort.
Choose from manually operated single or hinged paired panels, or automate your set-up with continuously hinged, electric operation, Kwik-Wall Operable Walls are available with ADA inset pass doors, storage pocket door closures, and a myriad of standard or custom panel finishes, limited only by your imagination.
Click to view our Indoor Air Quality (IAQ) Advantage™ GOLD certification for Luminous movable glass walls, marking our commitment to health and sustainability, by meeting criteria set for Collaborative for High Performance Schools 2009, EQ2.2.3 and USGBC LEED 2009 and V4 for low emitting materials.
The industry’s premium performance steel panel operable wall, engineered at 4” panel thickness and manufactured for rugged durability to fit openings up to 30’0” tall, and in unlimited opening widths, Series 3000 steel panels are certified by independent acoustical laboratory testing to achieve the industry’s best-in-class acoustic performance up to 56 STC.
Add a clear view aesthetic to your operable walls while still maintaining premium sound control with optional 3000 Series GL Panels that integrate dual-glazed, high-performance (43 & 48 STC) insulated glass units compatible and interchangeable with any hinged, paired panel or individual panel 3000 Series operable wall configuration.
Engineered at 3” panel thickness to minimize panel storage footprint, Series 2000 operable walls are Kwik-Wall’s most cost-effective operable wall choice. Available in all panel configurations, with certified STC ratings from 42 to 51 STC, you can depend on 2000 Series Operable Walls for acoustical performance and durability.
2000 series operable walls are also available with dual-glazed, high-performance (38 STC) insulated glass units that add a sophisticated clear viewing capability. 2000 Series GL panel option details are available in Product Downloads.
Kwik-Wall is now the North American licensee for Hufcor products!
With a long history of exceptional operational and acoustical performance in large and complex layouts up to 60 feet tall, Hufcor 600 Series operable walls have earned their legacy reputation.
With thousands of applications in the most iconic convention centers and hospitality facilities around the world, Hufcor’s rugged panel construction and smooth, decision-free track and carrier operation deliver!
Note: Application size restrictions apply.
Model 641 – single frame Individual Panels between 30’-1” & 41’-7” tall. Spliced 2-piece panels between 41-7” and 60’-0”.
Kwik-Guide: Operable Walls
SPECIFICATIONS | 3000 Series Operable Walls | 2000 Series Operable Walls | Hufcor Series 600 Operable Walls |
INDIVIDUAL PANELS | 3010 - Curve and Diverter, Offset Stack | 2010 - Curve and Diverter, Offset Stack | 641 - Curve and Diverter, Offset Stack |
INDIVIDUAL PANELS | 3020 - Multi-Directional, Offset Stack | 2020 - Multi-Directional, Offset Stack | 641 - Multi-Directional, Offset Stack |

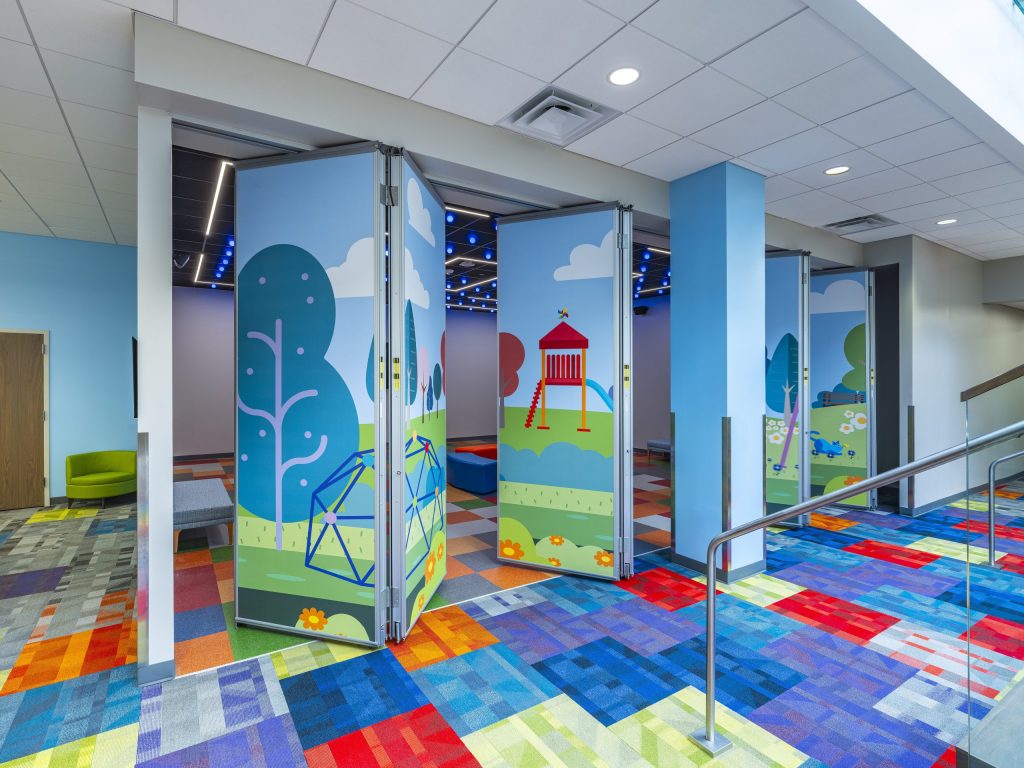

HINGED-PAIRED PANELS | 3030 - Straight Line, Center Stack | 2030 - Straight Line, Center Stack | N/A |
CONTINUOUSLY-HINGED PANELS | 3050 - Straight Line, Center Stack, Electric Operation | 2050 - Straight Line, Center Stack, Electric Operation | N/A |
STC RATING | 48 | 50 | 52 | 56 | 42 | 49 | 50 | 51 | 52 | 54 | 56 |
PANEL THICKNESS | 4" (101.6 mm) | 3" (76 mm) | 4" (76 mm) |
PANEL FRAME | 16 Gauge | 18 Gauge | 16 Gauge |
PANEL FINISH OPTIONS | Vinyl, Carpet, Fabric, HPL Laminate, C.O.M. Material, Full Height Marker / Tack Board, Uncovered, Field Painting by Others. | Vinyl, Carpet, Fabric, HPL Laminate, C.O.M. Material, Full Height Marker / Tack Board, Uncovered, Field Painting by Others. | Vinyl, Carpet, Fabric, HPL Laminate, C.O.M. Material, Full Height Marker / Tack Board, Uncovered. |
PANEL SKIN & FACING OPTIONS | Steel, Gypsum, MDF | Steel, Gypsum, MDF | Steel |
Insulated Glass (IGU) Inserts - Certified STC rated | 43 STC = 1-3/4" IGU thickness 48 STC =1-7/8" IGU thickness.Min. holdback dimensions: 4"@ ea. vertical frame, 11"@ header, 8"@ bottom rail | 38 STC = 1" IGU thickness. Min. holdback dimensions: 4"@ ea. vertical frame, 11"@ header, 8"@ bottom rail | N/A |
MAXIMUM OPENING HEIGHT | 30’-0” Models 3010, 3020 | 16’-2” Models 2010, 2020 | 30'-0" to 41'-7" single panels Up to 60'-0" spliced panels Model 641 |
24’-2” 3050 | 14’-2” 2050 | N/A | |
24’-2” 3030 | 24’-2” 2030 (steel) 14’-2” (Gyp. / MDF) | N/A | |
MAXIMUM OPENING WIDTH | Unlimited for Individual and Paired Panels | Unlimited for Individual and Paired Panels | Unlimited for Individual and Paired Panels |
WEIGHT LBS. / SQ. FT. | 7.5-12.9 | 6.5 -11.0 | 9.5 -13.6 |
TRACK SYSTEMS | 425 Clear Anodized Aluminum | 425 Clear Anodized Aluminum | Type 36 Clear Anodized Aluminum |

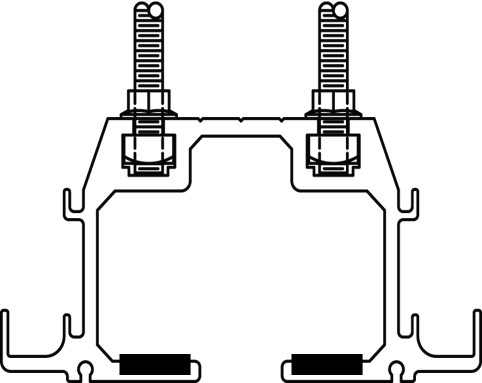

850 Clear Anodized Aluminum | 850 Clear Anodized Aluminum | Type 57 Clear Anodized Aluminum | |
850 Steel | Type 11 and 11L Steel | ||
PASS DOOR PANELS | Single, Double Pass Doors | Single, Double Pass Doors | Single, Double ADA Pass Doors |
Min. Wall Fabrication Ht. for 3’0” x 7’0” Pass Door Panel: 7'-8” | Min. Wall Fabrication Ht. for 3’0” x 7’0” Pass Door Panel: 7'-8” | Min. Wall Fabrication Ht. for 3’0” x 7’0” Pass Door Panel: 8'-0” | |

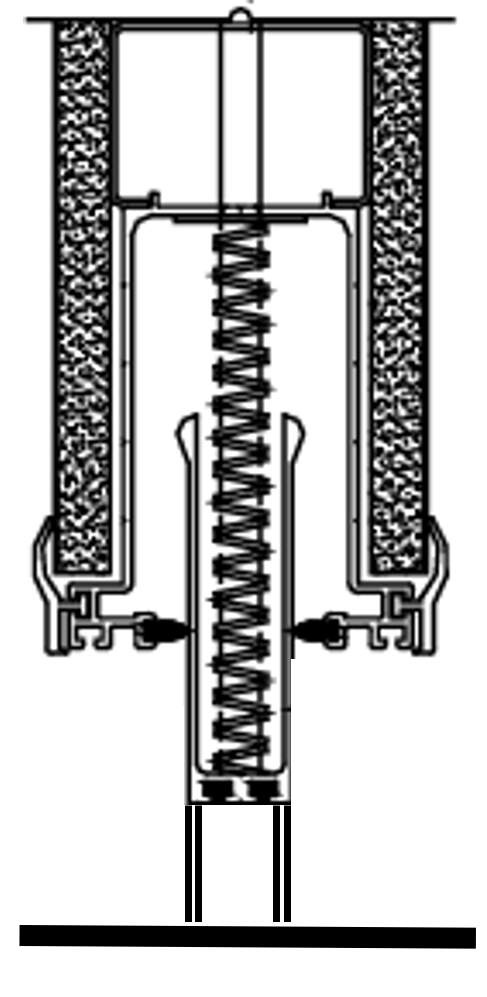

BOTTOM SEALS | 2” travel Standard, Edge activated | 2” travel Standard, Edge activated | 2” travel Standard, Edge activated |
2” travel Automatic, Self Activated | 2” travel Automatic, Self Activated | N/A | |
2” travel Fixed Adjustable | 2” travel Fixed Adjustable | N/A | |
Optional 3” Extended Bottom Seal Travel | N/A | Optional 4" and 6” Seals - Lift & Set manual Quick-Set bottom seals | |
TOP SEALS | Std. Fixed Vinyl Continous Contact | Std. - Fixed Vinyl Continous Contact | Std. Operable Top Seal |
Optional - Operable Top Seal | Optional - Operable Top Seal | Optional Fixed Vinyl Continous Contact | |
VERTICAL PANELS SEALS | Std. Trimless Acoustic Astragal | Std. Trimless Acoustic Astragal | Std. Trimless Acoustic Astragal |
Optional Cap - Type Acoustic Astragal | Optional Cap - Type Acoustic Astragal | Optional Cap - Type Acoustic Astragal |
